Base Disk Drivers

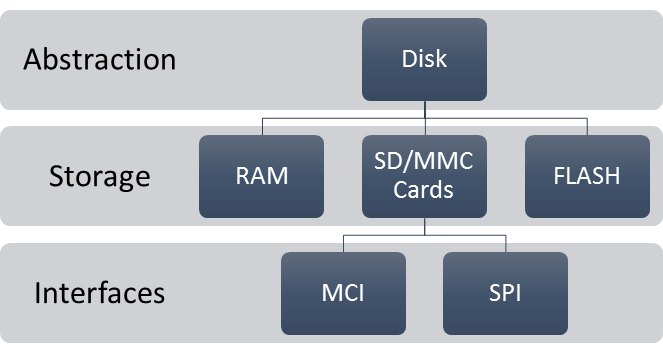

The Embedded SDK provides an abstract disk layer for handling the I/O operations of file system data. The disk layer provides a common API and is ultimately used by on-board file systems and USB mass storage interfaces.

Each supported disk contains a create function that is used to initialize the disk driver. Once initialized, the common disk functions can be used to transfer data to and from the disk.

Supported Disk Drivers

API Reference

STATUS DISK_Mount(DISK* disk)
Mounts a disk.
PARAMETERS
disk A pointer to the disk to be mounted.
RETURNS
SUCCESS The disk has been mounted.
ERR_NULLREFERENCE The argument 'disk' was found to be NULL.
ERR_NOMEDIA The media is not present for the disk.
ERR_NOTSUPPORTED The specified disk does not support being mounted.
REMARKS
If the disk fails to mount, it is unmounted to leave the disk in a known state.
STATUS DISK_Unmount(DISK* disk)
Unmounts a disk.
PARAMETERS
disk A pointer to the disk to be unmounted.
RETURNS
SUCCESS The disk has been unmounted.
ERR_NULLREFERENCE The argument 'disk' was found to be NULL.
ERR_NOTSUPPORTED The specified disk does not support being unmounted.
BOOLEAN DISK_Mounted(DISK* disk)
Returns an indication of whether a disk has been mounted.
PARAMETERS
disk A pointer to the disk to be checked for being mounted.
RETURNS
TRUE if the disk has been mounted; otherwise FALSE.
BOOLEAN DISK_MediaPresent(DISK* disk)
Returns an indication of whether the media is present for a disk.
PARAMETERS
disk A pointer to the disk to be checked for being mounted.
RETURNS
TRUE if the disk's media is present; otherwise FALSE.
BOOLEAN DISK_WriteProtect(DISK* disk)
Returns an indication of whether the media is write protected for a disk.
PARAMETERS
disk A pointer to the disk to be checked for write protection.
RETURNS
TRUE if the disk's media is write protected; otherwise FALSE.
UINT32 DISK_BlockSize(DISK* disk)
Returns the size of each block within a disk.
PARAMETERS
disk A pointer to the target disk.
RETURNS
The size, in bytes, of each block within the specified disk.
REMARKS
Depending upon the type of disk, may only be valid after the disk has been mounted.
UINT32 DISK_BlockCount(DISK* disk)
Returns the number of blocks within a disk.
PARAMETERS
disk A pointer to the target disk.
RETURNS
The total number of blocks contained within the specified disk.
REMARKS
Depending upon the type of disk, may only be valid after the disk has been mounted.
STATUS DISK_Read(DISK* disk, UINT32 lba, void* buf, UINT32 nblks)
Reads and returns data from a disk.
PARAMETERS
disk A pointer to the disk to be read.
lba The logical block address to be read.
buf A pointer to caller allocated buffer to receive the data read from the disk.
nblks The total number of blocks to be read.
RETURNS
SUCCESS The data has been read and returned from the disk.
ERR_NULLREFERENCE The argument 'disk' or 'buf' was found to be NULL.
ERR_NOTSUPPORTED The specified disk does not support being read.
STATUS DISK_Write(DISK* disk, UINT32 lba, const void* buf, UINT32 nblks)
Writes data to a disk.
PARAMETERS
disk A pointer to the disk to be written.
lba The logical block address to be written.
buf A pointer to the data to be written to the disk.
nblks The total number of blocks to be written.
RETURNS
SUCCESS The data has been written to the disk.
ERR_NULLREFERENCE The argument 'disk' or 'data' was found to be NULL.
ERR_NOTSUPPORTED The specified disk does not support being written.
